MoE Load Balancing (EPLB)

Overview

Mixture-of-Experts (MoE) models route tokens to different experts. Online request distributions are rarely uniform, so a subset of experts can remain hot and make their Expert Parallel (EP) ranks the bottleneck for an entire batch.

xLLM Expert Parallel Load Balancing (EPLB) creates redundant physical replicas of hot logical experts and adjusts the expert placement one layer at a time while the service is running. EPLB does not change the model’s logical expert count or routing result. It maintains a logical-to-physical mapping and migrates the weights required by that mapping.

The current implementation includes the control plane, load aggregation, pluggable policies, an asynchronous prepare protocol, and layer-by-layer weight activation. This document focuses on the DeepSeek V4 NPU npu_torch/FusedMoE path. Other models can use the same runtime protocol only after implementing model hooks such as prepare_expert_weight, start_expert_weight_transfer, and update_expert_weight.

Experts and Slots

EPLB distinguishes between two concepts:

• Logical expert: an expert ID produced by the model router. The model architecture determines this count.
• Physical expert slot: one resident copy of expert weights on an EP rank. A logical expert may have multiple physical replicas.

With the current one-worker-per-EP-rank deployment, each rank owns:

local_physical_experts = logical_experts / ep_size + redundant_experts_num

The global physical slot count is:

global_physical_experts = logical_experts + ep_size * redundant_experts_num

The logical expert count must therefore be divisible by ep_size. redundant_experts_num adds extra slots on every rank and increases both expert-weight memory and EPLB staging memory.

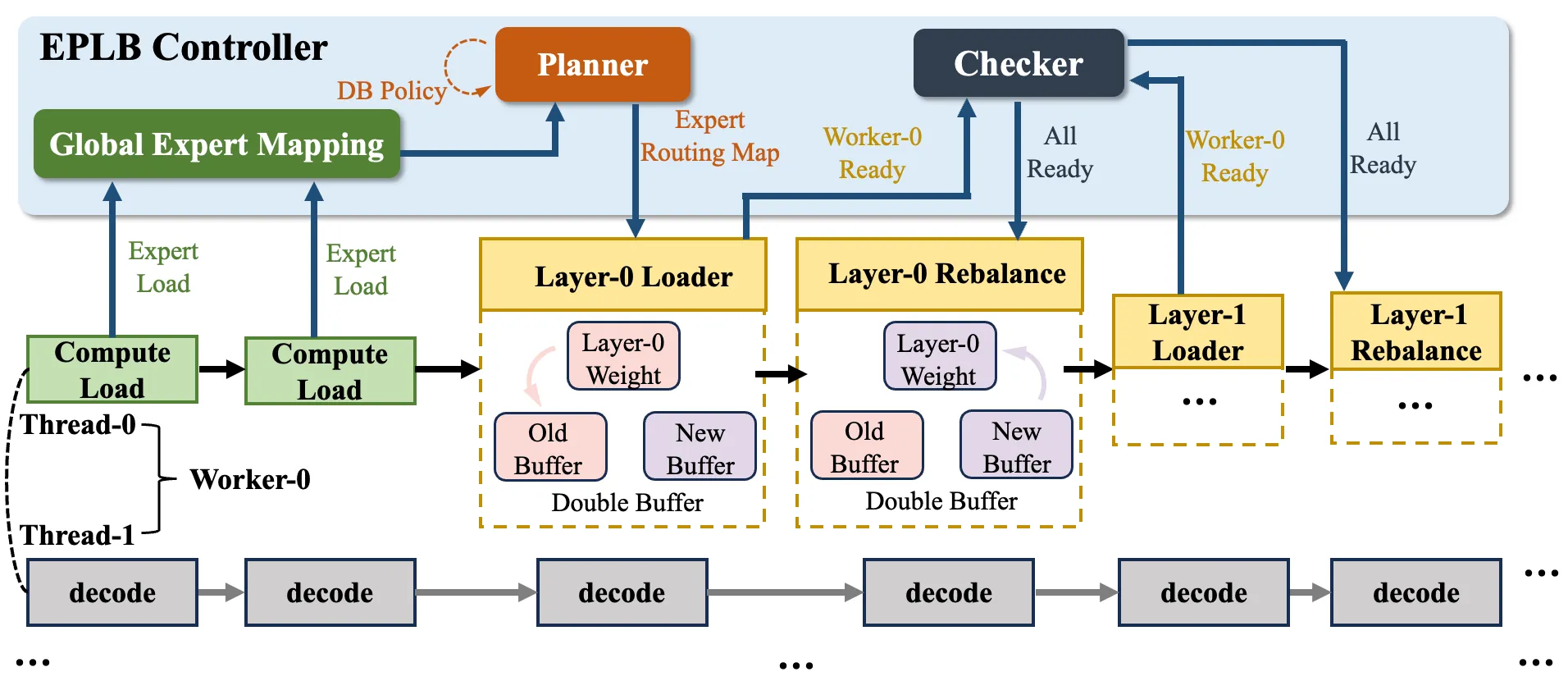

Current Architecture

Component	Responsibility
LLMEngine	Collects load and prepare tokens from every worker and places EplbInfo commands in the next forward input.
EplbManager	Owns the update timer, active placement, per-layer prepare/activate state machine, timeout handling, and commit.
EplbAggregator	Decodes physical-slot counters into per-round deltas, preserves physical load, and aggregates logical-expert load.
IEplbPolicy	Produces a candidate placement and per-layer update mask from logical load, physical load, and the active placement.
EplbExecutor	Runs asynchronous prepare work on each worker and starts migration and activation at forward boundaries.
Model EPLB hooks	Maintain logical-to-physical maps, build P2P plans, migrate weights, and activate the new weights.
ProcessGroup	Batches HCCL point-to-point send/recv calls through a dedicated ProcessGroupHCCL; the current all-connected super-node uses HCCS as its data plane.

The control plane uses EplbInfo with the following fields:

• prepare_layer_id: the MoE layer whose new placement must be prepared.
• prepare_token: a unique token for this prepare attempt. It isolates late results after a timeout.
• expert_ids: the global physical-slot table for the pending placement.
• update_layer_id: a prepared layer that may be activated at this forward boundary.
• activation_token: a unique activation token used to prove that the corresponding forward actually completed.

Runtime Flow

A complete rebalance uses the following sequence:

1. Each worker records the token count for every local physical expert slot during MoE forward. Counts are prefix encoded along the slot dimension, and EplbAggregator restores the per-slot values with a difference operation.
2. LLMEngine collects load from every worker. The placement that was active when a sample was submitted is queued with that sample, so an old sample cannot later be interpreted with a newly activated placement.
3. The first valid load sample starts the eplb_update_interval timer. When it expires and no other rebalance is in progress, the manager asks the selected policy to recompute a candidate for every layer.
4. Each candidate is evaluated against the current measured physical peak. The manager publishes only layers whose placement changes and whose improvement reaches eplb_min_peak_load_improvement, one layer at a time with prepare_layer_id, prepare_token, and the new expert_ids.
5. The worker’s EplbExecutor background thread computes the logical-to-physical map, changed slots, and the EP-wide P2P migration plan. A worker atomically reports the matching token only after prepare succeeds. A failed prepare is never reported as ready.
6. After every rank reports the same prepare token, the manager publishes update_layer_id. On the DeepSeek V4 path, each worker materializes staging weights and starts P2P before forward, then waits for migration and activates the weights after forward.
7. Only after the corresponding forward output returns with activation_token does the manager commit policy state, switch the active placement, and reset the physical-load window. Late or duplicate tokens are ignored.

EPLB commands are emitted only at a forward boundary with at least one non-empty DP batch, where every non-empty DP batch is decoding and the input is not graph warmup. Empty DP ranks may participate in this boundary. This prevents a switch while prefill or graph capture may still read the old weights. As a consequence, an already prepared layer remains pending when the workload never reaches an all-decode boundary.

Load Collection

The manager maintains two load views:

• Logical expert load: physical replica load is aggregated through the active slot table into logical expert IDs. Policies use it to identify hot experts and choose replicas.
• Physical slot load: the [layer, rank, slot] shape is preserved so a policy can measure the actual slowest rank under the current placement instead of assuming equal load across replicas of the same logical expert.

DeepSeek V4 uses the same load semantics across eager execution, ACL graph, and EP2 fused dispatch:

• Graph warmup does not enter the manager’s load window.
• ACL graph uses a per-token mask to remove graph padding and synthetic tokens on empty DP ranks.
• With eplb_use_decode_only_load=true, eager execution also records only real decode tokens and removes prefill rows from mixed batches.
• Fused dispatch records receiver-observed physical expert counts returned by the operator when possible. When a mixed phase cannot be filtered from aggregate operator counts, the implementation falls back to route-ID counting.

Rebalance Policies

Select a policy with eplb_policy_kind. The value is case-insensitive. An unknown value falls back to greedy instead of stopping the rebalance thread.

Policy	Placement Algorithm	Intended Use
balanced	Select replicas by maximum load reduction, then equal-capacity LPT packing across every rank in the all-connected HCCS super-node.	Default policy and recommended for the current super-node deployment.
greedy	Historical xLLM greedy replica selection and LPT packing.	Compatibility with historical behavior.

Historical policy names remain compatibility aliases for balanced. New configurations should use balanced.

Both policies use the same publication gate:

• The current peak comes from measured physical-slot load. The candidate peak is estimated from the candidate placement.
• A migration is published only when the peak reduction reaches eplb_min_peak_load_improvement.
• Every update interval recomputes every layer; no previous-load similarity gate can skip evaluation.
• A logical expert has at most one replica on the same rank.
• A prepare timeout calls the policy’s abort_layer hook, rolling back the candidate state instead of treating an undeployed placement as active.

DeepSeek V4 Weight Switching

The DeepSeek V4 FusedMoE path maintains stable-address active weights, pending staging weights, and a log2phy map. Weight switching behaves as follows:

• Weight storage is expanded at startup to include each rank’s redundant expert slots.
• After loading the main model weights, reusable staging buffers are warmed so the first rebalance does not allocate large NPU buffers on demand. The MTP model does not reserve a duplicate staging pool.
• Prepare computes host-side slot maps and P2P plans only. It does not materialize private-format NPU tensors concurrently with a forward that may be reading those tensors.
• Experts already resident on the same rank are copied into the pending buffer. Non-resident experts migrate through the dedicated EPLB ProcessGroupHCCL.
• batch_isend_irecv ultimately calls ProcessGroupHCCL::send/recv. HCCL is the communication library API, while rank-to-rank data in the current all-connected super-node travels over HCCS; EPLB does not model host boundaries.
• Send and receive operations for all tensors share one batched plan. Large payloads are chunked, and the implementation limits outstanding payload volume.
• P2P starts before forward and is awaited after forward. The current forward always uses the old placement, while the next forward observes the new placement.
• When fewer than half of the slots change, activation copies only changed slots. When at least half change, the implementation builds a complete pending tensor and activates it with one full-tensor copy_ per weight tensor instead of issuing many small copies.
• Active tensor objects are not replaced. Their contents and maps are updated in place to preserve stable addresses required by ACL graph.

EP2, MC2, and ACL Graph

The EPLB control plane does not require expert_parallel_degree=2. That setting selects the DeepSeek V4 EP Level 2 dispatch/combine path. enable_fused_mc2 then selects the EP2 MoE operator:

enable_fused_mc2	Behavior
-1	Automatic selection. It resolves to 1 when expert_parallel_degree=2, otherwise to 0.
0	Uses moe_distribute_dispatch_v2 + group_gemm + moe_distribute_combine_v2.
1	Uses DispatchFFNCombine when quantization, dtype, operator, and graph preparation requirements are satisfied.
2	Uses DispatchGmmCombineDecode for all-decode batches when its requirements are satisfied.

If the requested MC2 path does not satisfy dtype, quantization, TP, operator availability, or graph preparation requirements, the runtime selects an available regular MoE path. MC2 changes MoE execution and physical-load collection, but it does not change the EPLB policy or layer-by-layer switching protocol.

EPLB works with ACL graph enabled or disabled. In graph mode, expert weights and the log2phy map keep stable storage, while the decode mask is aligned per DP rank and padded with zeros so graph padding cannot affect the load signal.

Decode graph buckets created by one AclGraphExecutor share a fixed capture stream and one private graph pool. This lets buckets reuse graph scratch addresses instead of retaining an independent set of expandable segments for every warmed bucket. The optimization prevents graph-pool memory from growing linearly with the bucket count, but the graph pool, persistent tensors, and runtime caches still consume device memory. Actual usage depends on the model, warmed buckets, and concurrency settings.

Configuration

EPLB options can be provided through gflags or the xLLM JSON configuration. The manager snapshots redundant_experts_num, eplb_update_interval, eplb_min_peak_load_improvement, eplb_policy_kind, and eplb_prepare_timeout_seconds into EplbOptions when it is created. eplb_use_decode_only_load and expert_parallel_degree are model-execution settings read by their runtime paths. The supported operating model is still to finalize configuration before startup and restart the service after changing it.

The defaults below are the xLLM core gflags/JSON defaults. Deployment scripts may override them explicitly, so verify the effective command line and startup logs.

Option	Default	Constraint and Meaning
enable_eplb	false	Enables dynamic expert load balancing.
redundant_experts_num	1	Extra physical expert slots on every EP rank. Must be non-negative.
eplb_update_interval	1000	Rebalance interval in seconds, starting with the first valid load sample. Must be non-negative. The example below explicitly overrides it to 300.
eplb_min_peak_load_improvement	0.05	Minimum slowest-rank improvement required by every policy. Range [0, 1].
eplb_policy_kind	balanced	balanced (default) or greedy; historical names map to balanced, while unknown values fall back to greedy.
eplb_use_decode_only_load	false	Whether eager execution records only real decode tokens. Graph execution always filters padding.
eplb_prepare_timeout_seconds	30	Timeout while waiting for every rank to prepare the same layer. Must be positive. The layer is skipped and rolled back on timeout.
expert_parallel_degree	0	EP mode setting. Value 2 enables an eligible EP2 dispatch/combine path.
enable_fused_mc2	-1 (automatic)	Valid values are -1/0/1/2. Automatic mode resolves to 1 with expert_parallel_degree=2, otherwise to 0.

Launch Example

The following example represents 16 workers/EP ranks in one all-connected HCCS super-node and uses a 300-second test interval. ep_size must equal the actual worker count, and the model’s logical expert count must be divisible by 16.

--enable_eplb=true \
--ep_size=16 \
--expert_parallel_degree=2 \
--redundant_experts_num=1 \
--eplb_update_interval=300 \
--eplb_policy_kind=balanced \
--eplb_min_peak_load_improvement=0.05 \
--eplb_use_decode_only_load=true \
--enable_fused_mc2=1

See EP Parallelism for EP and DP/TP topology combinations.

Runtime Constraints

• EPLB aggregation currently requires ep_size == worker_num, which means one worker per EP rank.
• ep_size must be greater than 1, and the logical expert count must be divisible by ep_size.
• Redundant slots and staging buffers consume additional device memory. Leave capacity for both EPLB staging and the KV cache before startup.
• Weight activation occurs only at an all-decode forward boundary. It is never forced during graph warmup or a mixed prefill boundary.
• Configuration is snapshotted when the manager is created. Restart the service after changing startup options.

Shared Memory Compatibility

EPLB control fields and worker output pass through xLLM forward shared memory. The current SharedMemoryManager uses layout v2 with a magic value, version, payload size, and generation. A global generation lock serializes open/unlink/create transitions for objects with the same name, preventing workers from mapping different shared-memory generations.

When upgrading from an older xLLM binary, stop every old process that may access the same shared-memory names before starting the new version. Rolling old and new binaries together is not supported. An incompatible size, magic value, or layout version fails immediately; the new process does not resize or clear the old object.

Observability and Troubleshooting

Log Prefix	Meaning
EPLB manager start	Effective policy, MoE layer count, device count, and physical slots per device.
EPLB rebalance	Policy runtime and number of layers selected for update.
EPLB placement benefit	Current peak, candidate peak, improvement ratio, and benefit-gate result.
prepare_expert_weight	Layer, slot-table size, duration, and failure state for worker background prepare.
materialize_expert_weight	Time spent materializing DeepSeek V4 staging tensors at a forward boundary.
update_expert_weight	Layer, rank, MC2 mode, changed slots, P2P count, transfer time, activation time, and total time.
EPLB heartbeat	Liveness and progress for the rebalance, manager, executor, and P2P bucket paths.
EPLB staging reservation warmed	Staging bytes and tensor count reserved during startup.

For a stalled switch, first verify that every rank reports the same prepare_token, then inspect tasks_failed_since_last, layers_timed_out, and update_expert_weight. Partial P2P participation normally appears as a prepare timeout. An incompatible shared-memory layout fails during startup with a layout error.
